DIMLUX EXPERT SERIES315W 277V FULL SPECTRUM
THE DIMLUX EXPERT SERIES 315W FULL SPECTRUM IS A COMPLETE FIXTURE
COMES WITH THE REVOLUTIONARY Ultra Optics REFLECTOR.
Join the revolution today.
Crafted to perfection

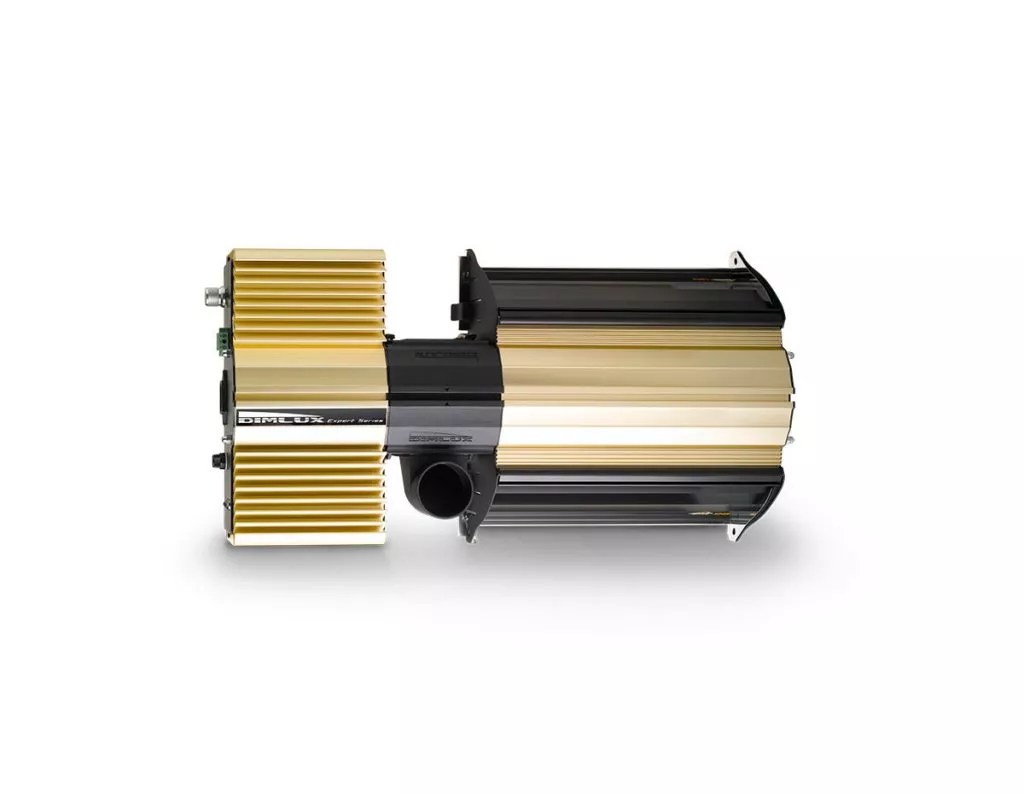

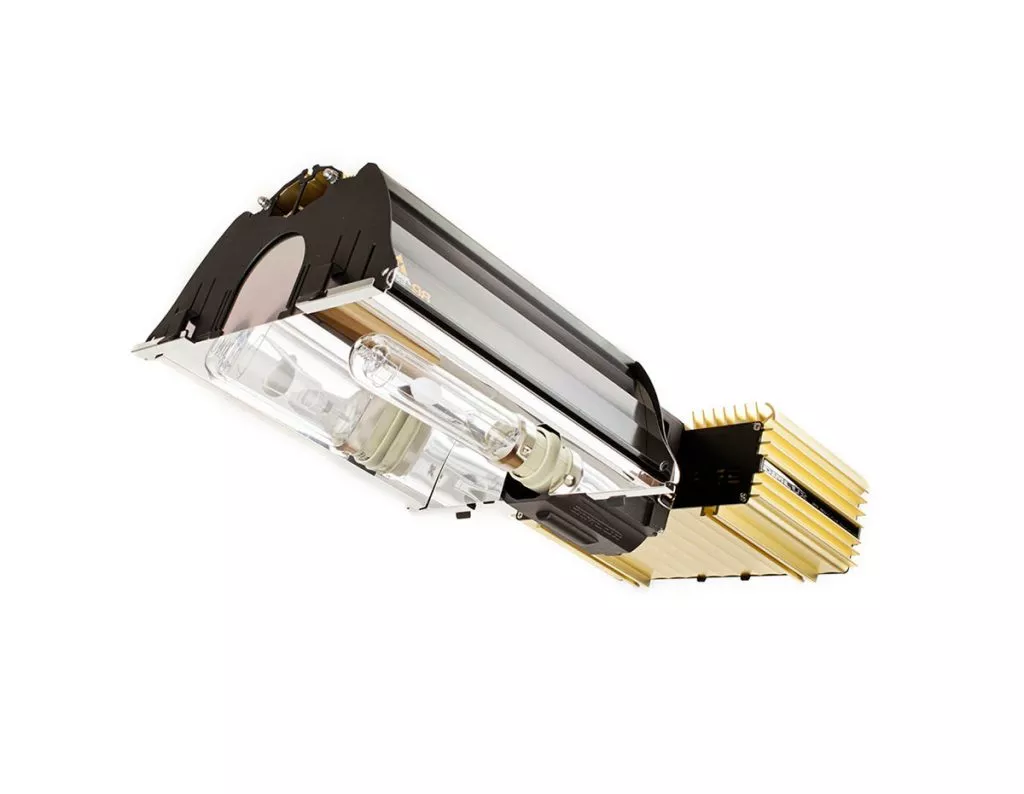

The Dimlux Expert Series 315W Full Spectrum is a complete 315W Full Spectrum fixture. The Dimlux Expert Series 315W Full Spectrum is a complete fixture including the Ultra Optics reflector. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors. As a result the highest possible efficiency (98%) of all available horticulture reflectors is achieved.
Get ready for dimlux
To light up your world
Low profile
You want all the canopy height you can get, and Dimlux gives it to you. Lowest profile in greenhouse lights.
controllable
You can effortlessly control up to 160 lights with a single Maxi Controller (sold separately).
Modular
Get the whole system package or add as you grow.
Dimlux Expert Series 315W Full Spectrum. Comes standard with a 2 meter Interlink cable. If a longer cable is needed it must be ordered separately.
better than sunlight

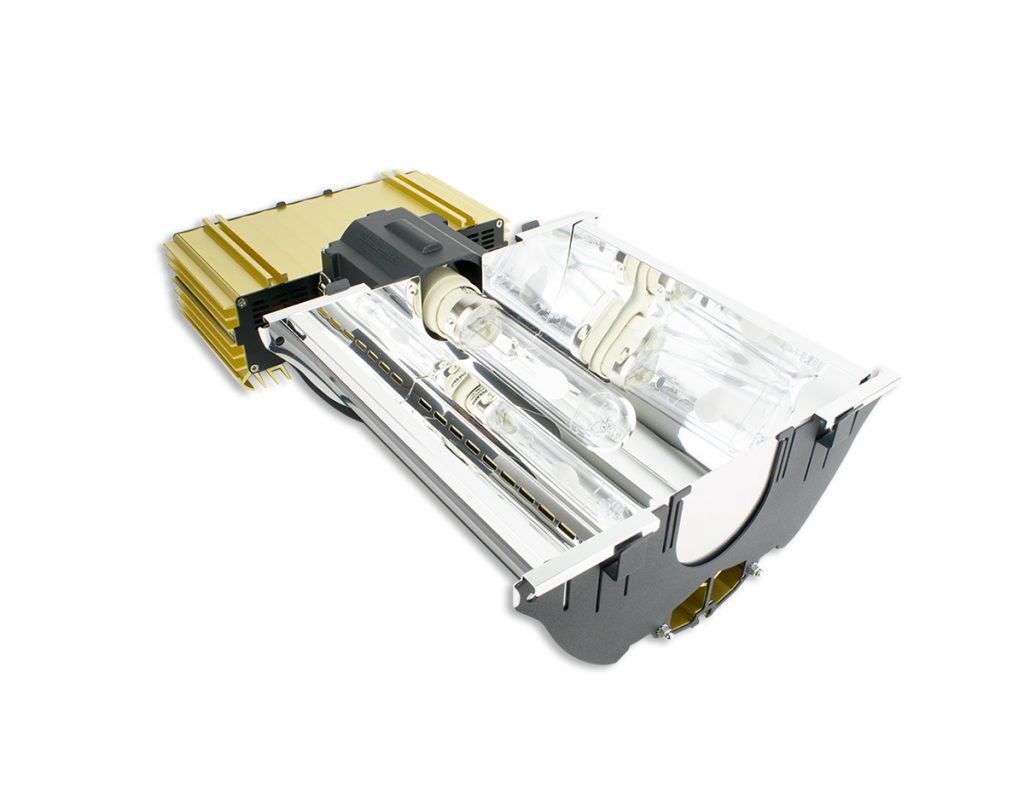

Provided with adjustable side reflectors for better overlap and to minimize wall losses. Due to the open design of the reflector the lamp is passively cooled which is a benefit for the life and efficiency of the lamp. There is a 50mm socket on the reflector which can be used to significantly reduce the room temperature by actively extracting the air. There are also optional add-on reflectors available which be placed to minimize the wall loss even more. This reflector is replaceable.
Stats
Plant maximizing light output
Boost the light up to 380 Watts
Commercial Power
Output: 160-380 Watt
Soft Start: Low inrush for use without Maxi Controller and Zero start (no inrush) for use with the Maxi Controller
Soft Dim: Yes
Dim Button: 7 dim levels and off mode.
Can be switched on and off via the Maxi Controller as well as stepless dimming
Ultra High Frequency: Yes
Diagnostic display: Yes
Including: Dimlux Daylight CMH315W 3k Agro lamp and 4M cable and plug
Nanotube: No
Dim levels: Soft-Off, 165W, 205W, 245W, 280W, 315W, 345W, 380W
Power consumption at 315W = 331W, 1.13A at 277V
Power consumption at boost 380W = 399W, 1.4A at 277V
System PPF at 315W = 588 μmol/s
System PPF at 380W = 706 μmol/s
Illumination surface:
at 315W= min 0.42m² (4.52ft²), max 1m² (10.76ft²)
at 380W= min 0.5m² (5.38ft²), max 1.2m² (12.91ft²)
ø50mm (2”) connection for active extraction
Dimensions 530x275x130mm (20.8”x10.8”x5.1”)
Weight 4.9kg (10.80lbs)
More Information
Dimlux Ceramic-Discharge Metal Halide systems (also known as CDM or CMH) deliver a spectrum that is significantly more similar to natural sunlight than standard high-intensity discharge (HID) systems. These state-of-the-art complete lamp fixtures generate a greater level of useable plant light (photosynthetically active radiation) and operate with a blinding intensity that’s immediately apparent to the naked eye.
The CDM-TP 315w/930 lamp is optimized for the bloom phase of the growth cycle with enhanced reds. Nevertheless, due to the full-spectrum properties of this lamp it will produce excellent results in both veg and flower. Expect to see increased growth rates, improvement in overall vigor, tighter internodes, and an increase in final weight. Throughout the growth cycle, from seed to harvest, the effects of the Dimlux Expert Series 315-Watt CMH Complete Fixture – 240 Volt will be obvious and ensure all hardware and setup costs are quickly recuperated.
- Philips CDM-TP 315w/930 – full spectrum lamp
- A blinding intensity that’s clearly visible with the naked eye
- Ideal as both supplementary and stand alone lighting
- Highly efficient – puts out 1.9 micromoles (umol) per watt of electricity
- Extremely high PAR levels
- Full fixture – lamp, ballast, and reflector
- Alpha 98 reflector with Single Bounce Clear Sight (SBCS) technology
- Fully compatible with the Dimlux Maxi Controller
- Adjustable output levels from 165w to 380w
Excels as both supplementary and stand alone lighting
SBCS -Single Bounce reflector ensures minimal light loss
Brighter, cleaner light for maximum yield
Less Heat – reduced risk of heat damage to plants
Reduce cooling costs
No loss of vertical space – ideal for rooms with 8 ft ceilings
Available Dimlux Maxi Controller (sold separately) for dimming to sunrise/sunset and when temperature, humidity, VPD and CO2 levels vary
Overall much greater output and yield than any other lighting system
The Dimlux Expert Series 315-Watt Full Spectrum is a complete fixture containing the highest quality Ultra Optics reflector, ballast, and lamp. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors. The resulting effect is the highest possible efficiency (98%) of all available horticulture reflectors is achieved.
This fixture comes with adjustable side reflectors for better overlap and to minimize wall losses. Due to the open design of the reflector, the lamp is passively cooled which is a benefit for the life and efficiency of the lamp. There is a 50mm socket on the reflector which can be used to significantly reduce the room temperature by actively extracting the air. There are also optional add-on reflectors available which be placed to minimize the wall loss even more. This reflector is fully replaceable.
Caution: These lighting fixtures, like most all high-pressure sodium and metal halide lamps, are extremely hot when in use and for some time after being shut-off.It is imperative to avoid touching the lamp with anything – especially, body parts like hands and fingers or plant parts such as leaves or buds, as this may cause fire or burns. Additionally, be careful to avoid spraying anything into the light hood, reflector, or on the lamp, as this may lead to permanent damage including fixture failure or even a fire.
