DIMLUX PRO
PROFESSIONAL HORTICULTURE LIGHTING SOLUTION
REMOVABLE ULTRA OPTICS REFLECTOR
4 DIGIT DISPLAY WITH BOOST FUNCTION
PROFESSIONAL HORTICULTURE LIGHTING SOLUTIONS
Dimlux develops and manufactures tailored lighting solutions urban farming and small scale production and large scale horticulture. With decades of experience our engineers have combined the newest techniques and innovations to create the most advanced complete lighting system on the market on the market today.

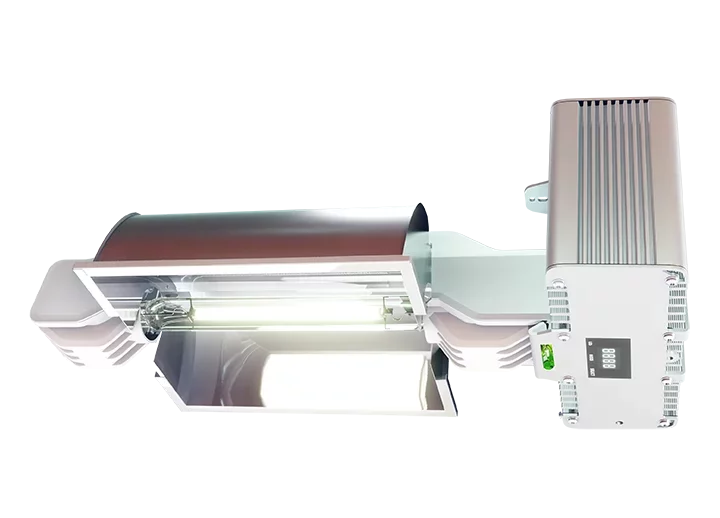

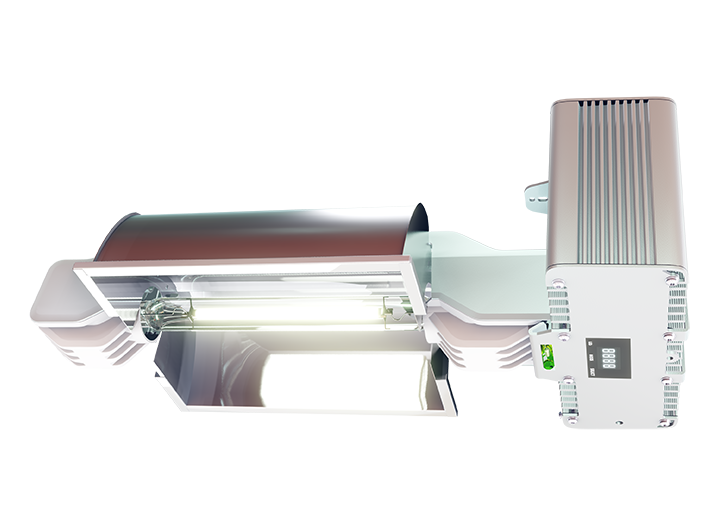

DIMLUX PRO 1000W
| Voltage | 240V | 277V |
| Input Power @ 100% | 1035W | 1032W |
| Input Current @ 100% | 4.5A | 4.5A |
| Input Power @ Boost | 1242W | 1242W |
| Input Current @ Boost | 5.4A | 5.4A |
| Input Frequency | 50/60 Hz | 50/60 Hz |
| Power Factor | >0.95 | >0.95 |
| System PPF @ 1000W | 2016 μmol/s | 2016 μmol/s |
| System PPE @ 1000W | 1.95 µmol/J | 1.95 µmol/J |
| System PPF @ 1150W | 2339 μmol/s | 2339 μmol/s |
| System PPE @ 1150W | 1.96 µmol/J | 1.97 µmol/J |
| Ultra High Frequency (UHF) | Yes | Yes |
| Controller | By WiFi – Maxi Controller | By WiFi – Maxi Controller |

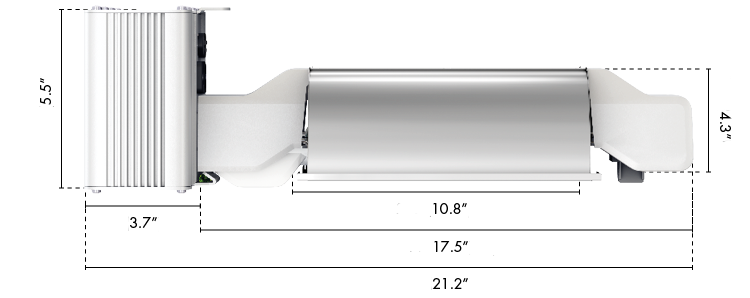

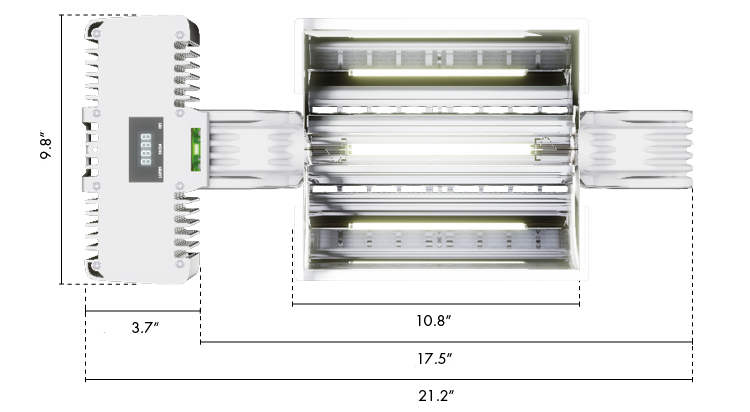

| Dimensions | 21.18" x 9.76" x 4.52" | 21.18" x 9.76" x 4.52" |
| Weight | 9 lbs | 9 lbs |
EASY REMOVABLE ULTRA OPTICS REFLECTOR
Ideal for when the reflector will be changed at high heights for replacement or cleaning. When growing in summer many greenhouse growers want to remove the reflector to prevent the reflector from deterioration and to decrease the amount of shadow on their plants.
AN ULTIMATE RANGE OF REFLECTORS TO MEET EVERYONE’S NEEDS
The main goal in designing the Ultra Optics Reflector was to achieve the highest efficiency (light output) possible. It’s designed according to the SBCS (Single Bounce Clear Sight) principle which means that each light beam reflects only one single time in the reflector and then goes out directly (Single Bounce). After reflection, the beam is not hindered by the lamp or other parts (Clear Sight). The design from the reflector is optically perfect so that no hammered or textured pattern is needed to spread hotspots.
Hammered or textured reflective reflectors are made to improve uniformity and create undesirable multiple reflections inside the reflector and cause internal reflections from the reflector to the lamp causing a decrease in efficiency. These techniques used in our reflector combined with the use of Miro Silver mirror will provide unparalleled results.
Hammered or textured reflective reflectors are made to improve uniformity and create undesirable multiple reflections inside the reflector and cause internal reflections from the reflector to the lamp causing a decrease in efficiency. These techniques used in our reflector combined with the use of Miro Silver mirror will provide unparalleled results.

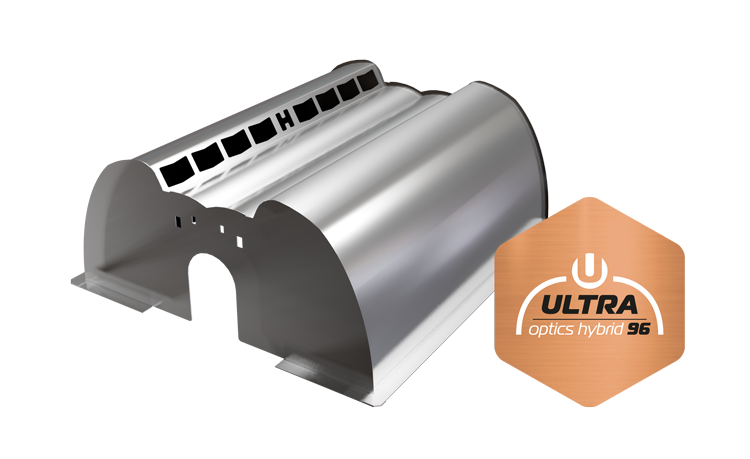

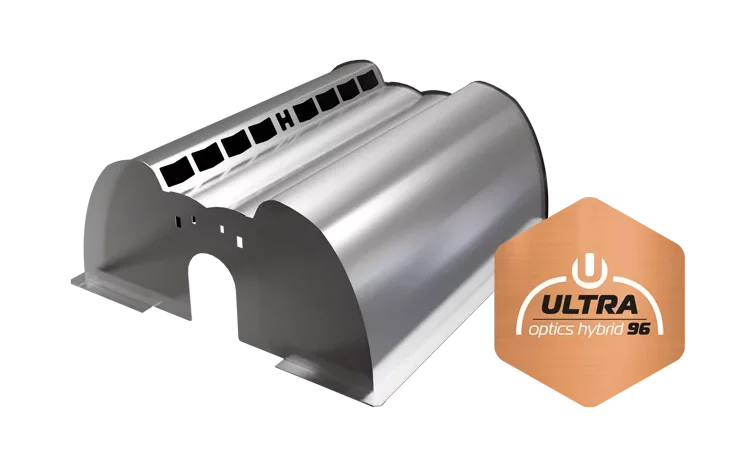

Ultra Optics Hybrid 96
The Hybrid reflector ensures a deep penetration into the plants, while having a larger overlap with other fixtures for better uniformity. The area it illuminates has an aspect ratio of 1.3:1. This reflector is the ideal choice for many scenarios because it combines the best qualities of the Deep and Wide reflectors.

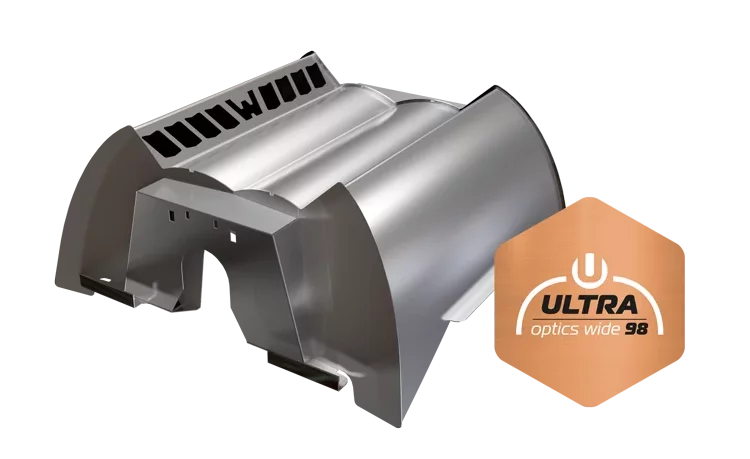

Ultra Optics Wide 98
The Wide reflector illuminates a much wider area, which allows for a very short distance between the plants and the reflector. Because of the wider spread, the distance between the crop and reflector for the 1000W fixture is about the same as a regular 600W system. The area it illuminates has an aspect ratio of 2:1, a rectangle.

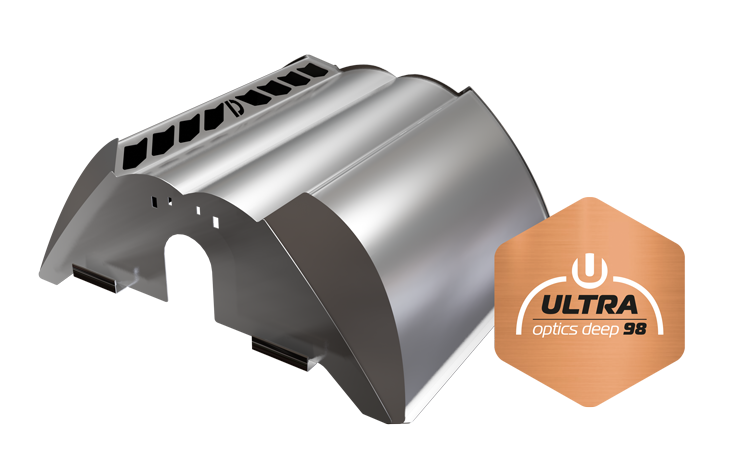

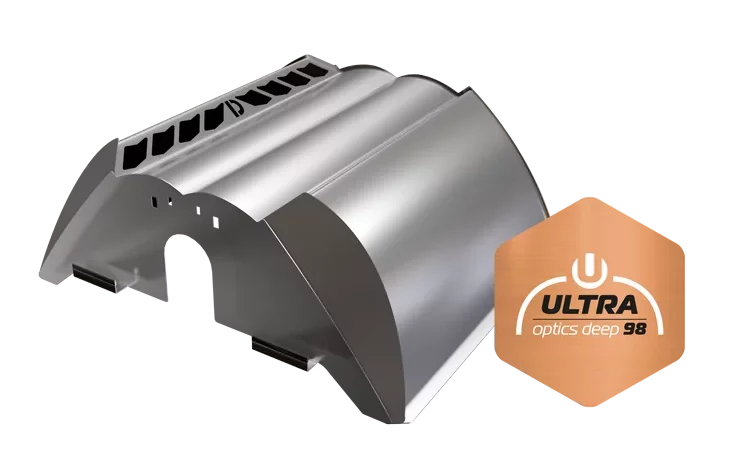

Ultra Optics Deep 98
The Deep reflector allows the light to penetrate very deep into the canopy. Because the Deep reflector directs more light downwards and less to the sides, losses due to walls and walking paths are minimized. The area it illuminates has an aspect ratio of 1:1, square.

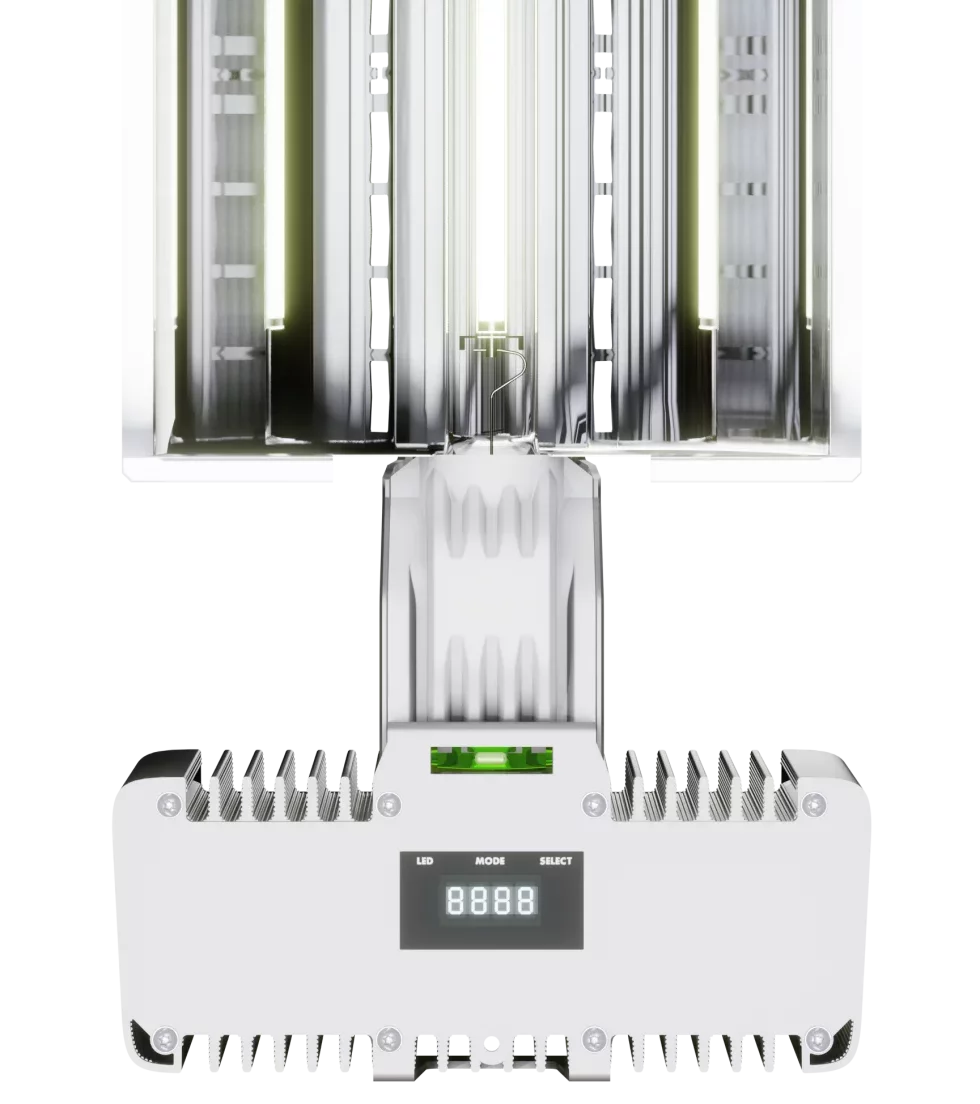

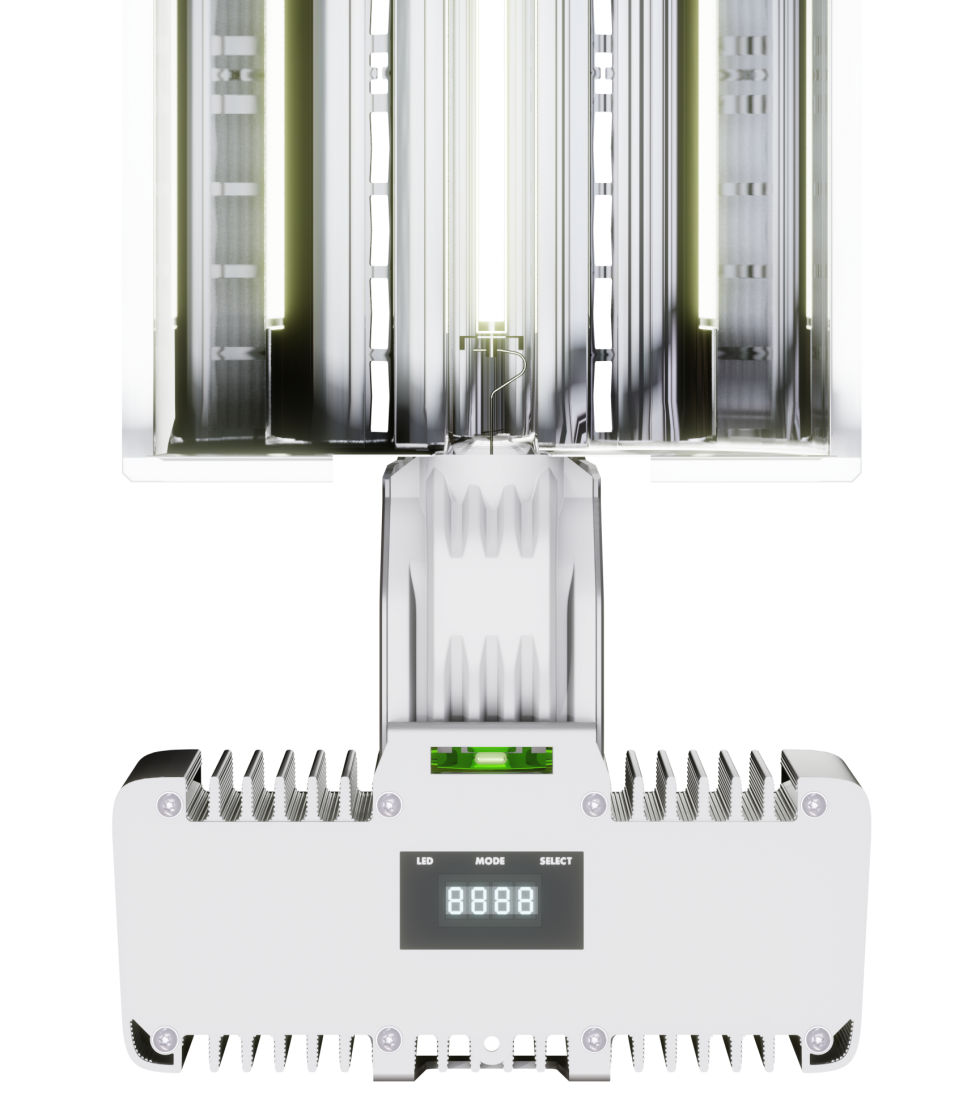

4 DIGIT DISPLAY WITH A DIM SWITCH AND BOOST
Status and alarms will be displayed on this display. The Dimlux Pro Series can be remote controlled and controlled with the dim switch and with a 1000W bulb and in boost it can go up to 1150W.

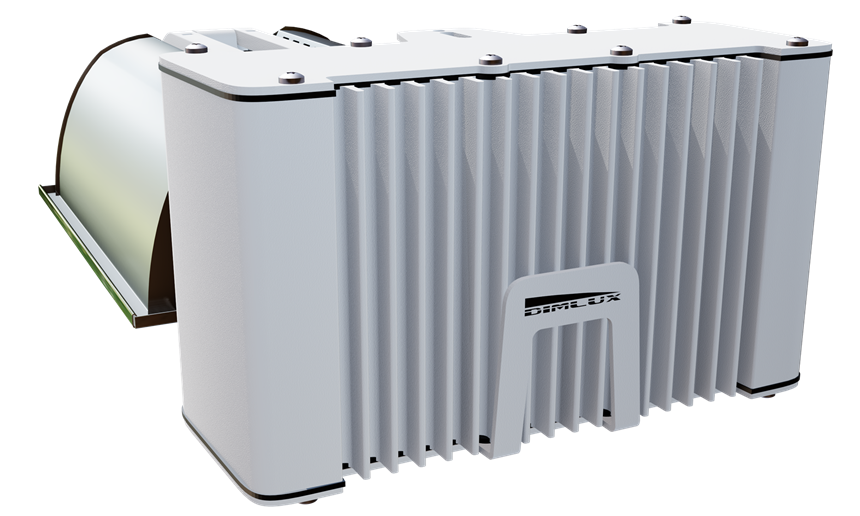

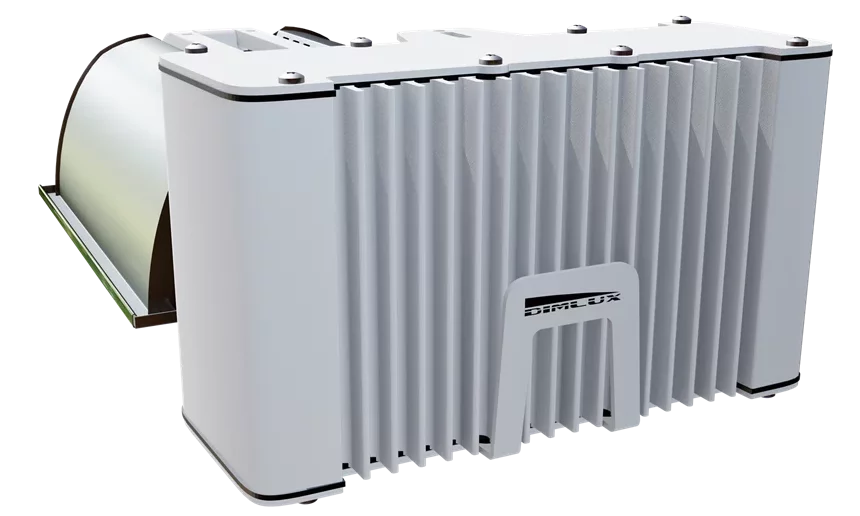

CLOSED & VERTICAL BALLAST
The Dimlux Pro Series has a closed ballast instead of an open ballast. This to prevent moisture getting into the ballast. The ballast is mounted vertically to decrease the amount of light which is intercepted by the fixture. The Dimlux Pro Series has the least light interception during a full day light cycle.

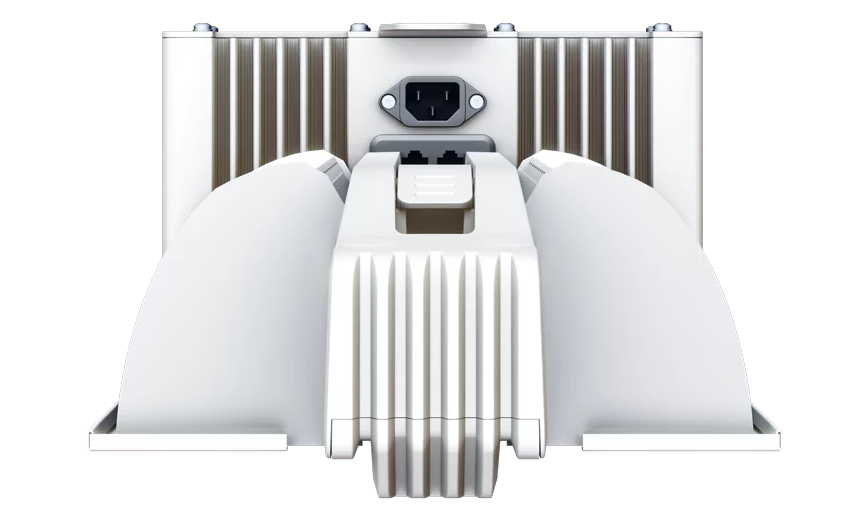

SMART BALLAST
The ballast is software upgradeable and ready for the new digital controller platform.
GEO MEMBRANE
The geo membrane equalizes the pressure inside and outside the ballast to prevent moisture getting into the ballast when cooling off.
PLACEHOLDER TEXT

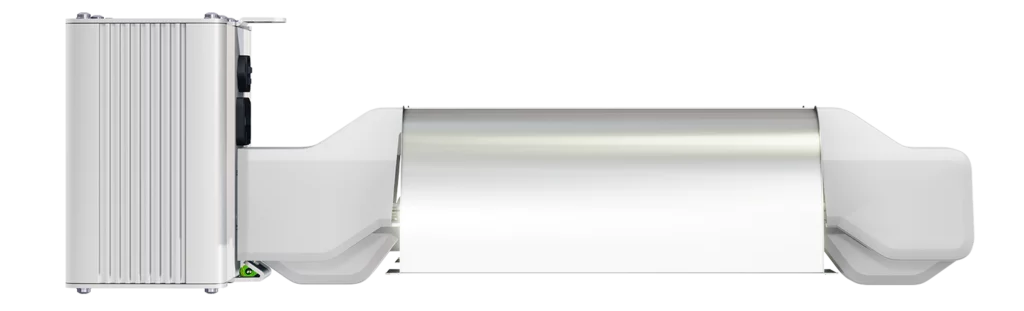

Low profile
You want all the canopy height you can get, and Dimlux gives it to you. Lowest profile in greenhouse lights.
controllable
You can effortlessly control up to 160 lights with a single Maxi Controller (sold separately).
Modular
Get the whole system package or add as you grow.
Dimlux Expert Series 1000W DE EL UHF. Comes standard with a 2.5 meter Interlink cable. If a longer cable is needed it must be ordered separately, please see: Dimlux Interlink cable for Dimlux
better than sunlight
Provided with adjustable side reflectors for better overlap and to minimize wall losses. Due to the open design of the reflector the lamp is passively cooled which is a benefit for the life and efficiency of the lamp. There is a 50mm socket on the reflector which can be used to significantly reduce the room temperature by actively extracting the air. There are also optional add-on reflectors available which be placed to minimize the wall loss even more. This reflector is replaceable.
Stats
Plant maximizing light output
Boost the light up to 1200 Watts
Commonly available
600 – 1,200 Watt output
On and off switch and infinitely variable control by the Maxi Controller
Soft start for low inrush current. No inrush current when using the Maxi Controller!
Soft Dim: Yes
Dim levels: Soft-Off, 600W, 700W, 800W, 900W, 1,000W, 1,100W, 1,200W
Dim Button: 7 dim levels and off mode. Can be switched on and off via the Maxi Controller as well as stepless dimming
Ultra High Frequency: Yes
Diagnostic display: Yes
System PPF at 1000W: 2107 µmol/s
System PPF at 1,200W: 2,528 µmol/s
Illumination surface
at 1,000W = min 1.4m² (15.06ft²), max 3.3m² (35.52ft²)
at 1,200W = min 1.65m² (17.76ft²), max. 4m² (43.05ft²)
50mm (2”) connection for active extraction
Controller: Maxi Controller
Dimensions (L x W x H): 25” x 10.75” x 5”
Weight: 13 lbs
