DIMLUX
xtreme ballasts

MAXIMUM LAMP PERFORMANCE DRIVEN BY THE
MOST ADVANCED BALLAST IN THE INDUSTRY.

Join the revolution today.

EXTENSIVE AND ACCURATE ADJUSTMENT OPTIONS

In the field of digital ballasts, the DimLux is the most silent system, there are little or no vibrant and buzzing sounds and no buzzing and/or rattling relay perceptible when turning on and off. The DimLux can be used as a normal (digital) ballast in a normal system with relay and time clock. However, if the DimLux is used in combination with the OptiClimate maxi Controller, the maximal performances and all possibilities of the DimLux can be fully appreciated.

WHY THE DIMLUX XTREME BALLAST IS BEST FOR YOU

  • Connection: 230V
  • Overdrive: 15%
  • Soft Start: low inrush current with use without
  • Maxi Controller and Zero-Start (no inrush current) with the Maxi Controller
  • Soft Dim: Yes
  • Dim Button: 7 positions and Soft-Off function.
  • Turning on and off and continuous dimming can also be performed through the Maxi Controller
  • Ultra High Frequency: Yes
  • Provided with diagnose displays: Yes

7 DIM OPTIONS INCLUDING 2 SPECIAL 'BOOST'

The DimLux ballast of the 600W and 1000W systems has the greatest dimming range of all electrical ballasts that are available at the moment, so that you can most accurately adjust the amount of light (output) to the requirements of your crops. There are 7 standard dim options available (most ballasts offer 3 or 4), including two special “boost” functions that allow you to safely overclock the lamp. This makes it possible to obtain no less than an extra 15% of grow light from the lamp

STEPWISE TO CONTINUOUS-VARIABLE DIMMING

Connecting a DimLux Expert Series light system to a DimLux Maxi Controller eases the switch from stepwise dimming to continuous-variable dimming, which makes it even easier to effectuate the perfect light setting. You can do this by means of the + and – (brightness) buttons, or you can set the required temperature and leave the rest of it to the Maxi Controller. It won’t get any easier!

DIMLUX EXTREME SERIES

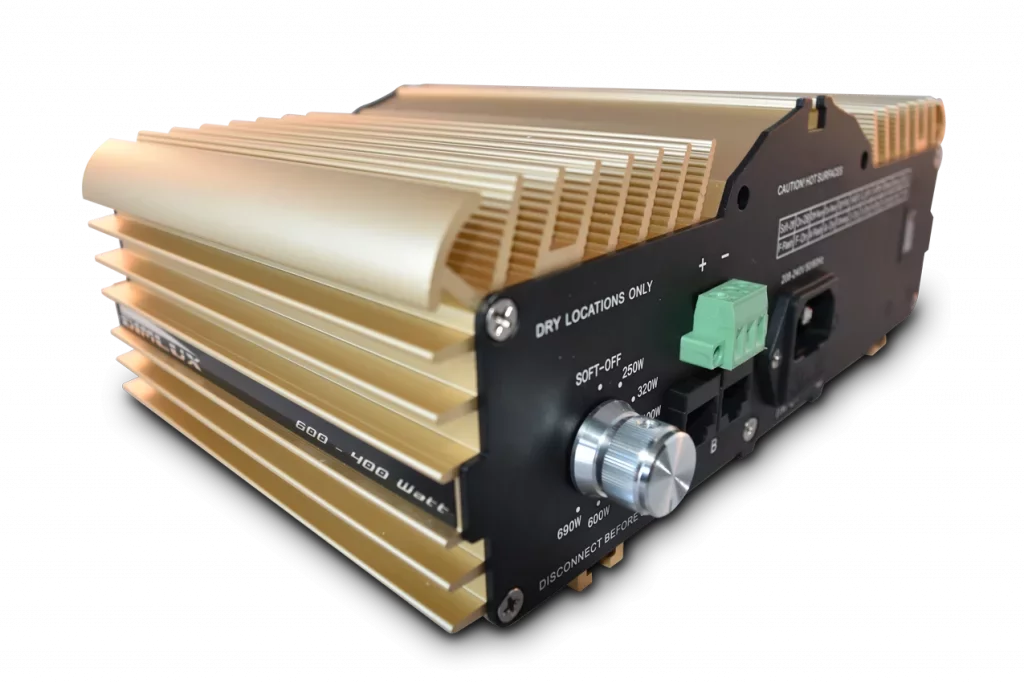

600W – 400W DIM BUTTON

DIMLUX IS VERY QUIET SYSTEM, MINIMAL NOISE

DimLux Xtreme series 600W-400W Dim Button. Comes standard with a 0,6 meter Interlink cable. If a longer cable is needed it must be ordered separately, please see: DimLux Interlink cable for DimLux. In the field of digital ballasts DimLux is the most quiet system, there are hardly any vibrating or buzzing noises and no buzzing and / or chattering noises in the relay can be heard. The DimLux can be used as normal (digital) ballast in a normal system with relay and timer. However, if the DimLux is used in combination with the DimLux Maxi Controller you will get the maximum performance and can use all the features of the DimLux in its full advantage.

Dim button with 7 Dim levels and Soft Off:

  • Soft Off
  • 250 Watt
  • 320 Watt
  • 400 Watt
  • 440 Watt Boost 10% at 400 Watt
  • 480 Watt Boost 20% at 400 Watt (only possible with the Sylvania Grolux 400 Watt lamp)
  • 600 Watt
  • 690Watt
  • 15% Overdrive with 600W lamps
  • 20% Overdrive with 400W lamps (Sylvania Grolux)

DIMLUX XTREME SERIES

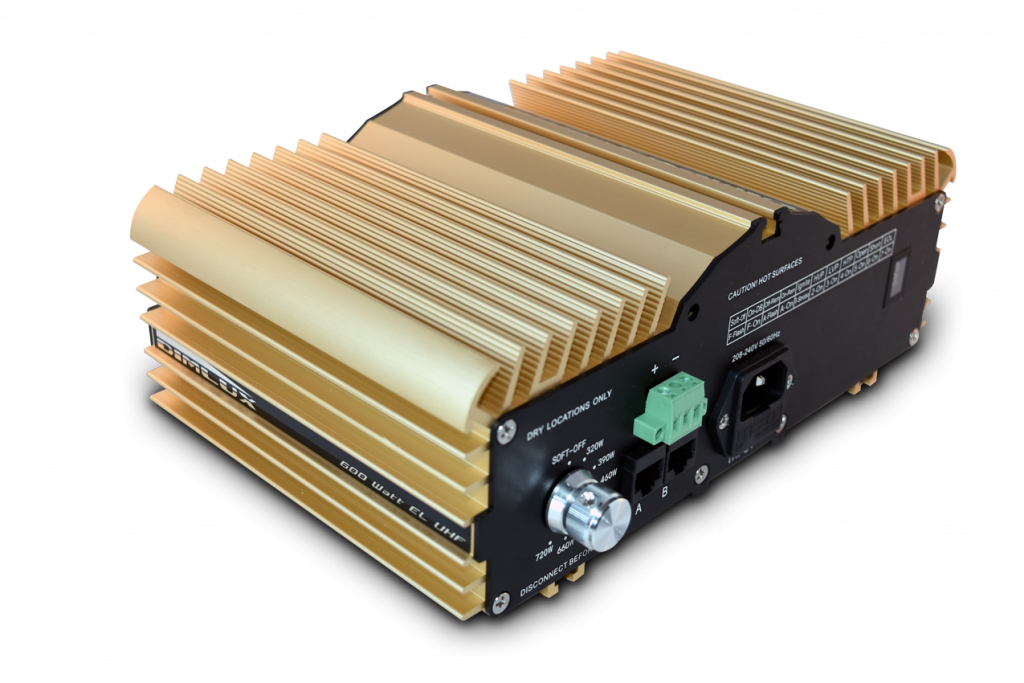

600W EL UHF DIM BUTTON

DIMLUX IS VERY QUIET SYSTEM, MINIMAL NOISE

DimLux Xtreme Series 600W 400V EL UHF Dim Button. Comes standard with a 0,6 meter Interlink cable. If a longer cable is needed it must be ordered separately, please see: DimLux Interlink cable for DimLux
In the field of digital ballasts DimLux is the most quiet system, there are hardly any vibrating or buzzing noises and no buzzing and / or chattering noises in the relay can be heard.

The DimLux can be used as normal (digital) ballast in a normal system with relay and timer. However, if the DimLux is used in combination with the DimLux Maxi Controller you will get the maximum performance and can use all the features of the DimLux in its full advantage.

Dim button with 7 Dim levels and Soft Off:

  • Soft Off
  • 320W
  • 390W
  • 460W
  • 530W
  • 600W
  • 645W Boost
  • 720W Boost 20%

BALLAST SPECIFICATIONS

  • Suitable for: 600W 400W
  • Output: 250-690 Watt
  • Connection: 230V
  • Overdrive:
  • 15% Overdrive with 600W lamps
  • 20% Overdrive with 400W lamps (Sylvania Grolux)
  • Soft Start: Low inrush for use without Maxi Controller and Zero start (no inrush) for use with the Maxi Controller
  • Soft Dim: Yes
  • Dim Button: 7 dim levels and off mode. Can be switched on and off via the Maxi Controller as well as stepless dimming
  • Ultra High Frequency: No
  • Diagnostic display: Yes
  • Includes: 4m cable and plug
  • Nanotube: No
  • Suitable for: 600W 400V EL UHF
  • Output: 320-690 Watt
  • Connection: 230V
  • Overdrive: 20%
  • Soft Start: low inrush for use without Maxi Controller and Zero start (no inrush) for use with the Maxi Controller
  • Soft Dim: Yes
  • Dim Button: 7 dim levels and off mode. Can be switched on and off via the Maxi Controller as welL as stepless dimming
  • Ultra High Frequency: Yes
  • Diagnostic display: Yes
  • Including: 4m cable and plug
  • Nanotube: No
